Stud & Track Roll Forming Machine for Steel Frame Building Construction

Product Name : Stud & Track Roll Forming Machine

Coil Material Thickness : 0.3-0.8mm

Processing Material : Galvanized Steel

Roller Material : Cr12MOV

Diameter of Shaft : 56mm

Forming Speed : 15-25m/Min

Package : One Full Set of 20 Feet Container

Trademark : Nexus Machinery

Transport Package : Control Box and Easy Damaged Parts: Protective PA

Specification : 60-27-28

Origin : Cangzhou

HS Code : 8455221000

Port : Tianjin, China

Supply Ability : 10 Sets/Month

Payment Terms : L/C, T/T, D/P, Western Union, Paypal, Money Gram

Warranty : 1 Year

Certification : CE, RoHS, GS, ISO9001, SGS

Customized : Customized

Condition : New

Control Type : Electric

Automatic Grade : Automatic

Contact Now

Product Description

Customer Question & Answer

Ask something for more details

(0)

Stud & Track Roll Forming Machine for Steel Frame Building Construction

Stud & Track Roll Forming Machine for Steel Frame Building Construction is used to plaster board, gypsum board and other decorative finishes lightweight board made of non-load-bearing walls and roof of the building style decoration, a variety of decorative building roof shape, inside and outside the building wall and ceiling scaffolding base material.Products made by this machine are suitable to use in hotels, theaters, shopping malls, factories, office buildings, old building renovation, interior decoration settings, roof and other places.

Stud & Track Roll Forming Machine for Steel Frame Building Construction

Specifications of Stud & Track Roll Forming Machine for Steel Frame Building Construction

1.	Power requirement	Type	380v/3ph/50hz
		Main Motor power	5.5kw
		Cutter power	5.5kw+2.3kw
2.	Forming speed(m/min)		0-30m/min max	Not include the time of cutting
3.	Forming stations		12 stations
5.	Material of rollers		CR12
6.	Thickness of structure		30mm
7	Forming shaft diameter(mm)		70
8	Drive		Gear box
9	Type of cutting		Hydraulic cutting
10.	Control system		PLC xinjie
11.	Install dimension(depend on the final design)		4.8m×0.6m×1.2m	Without panel length
12.	Total weight (Approx)		2.3T	Depend on final design
13.	Screen		Text screen /touch screen

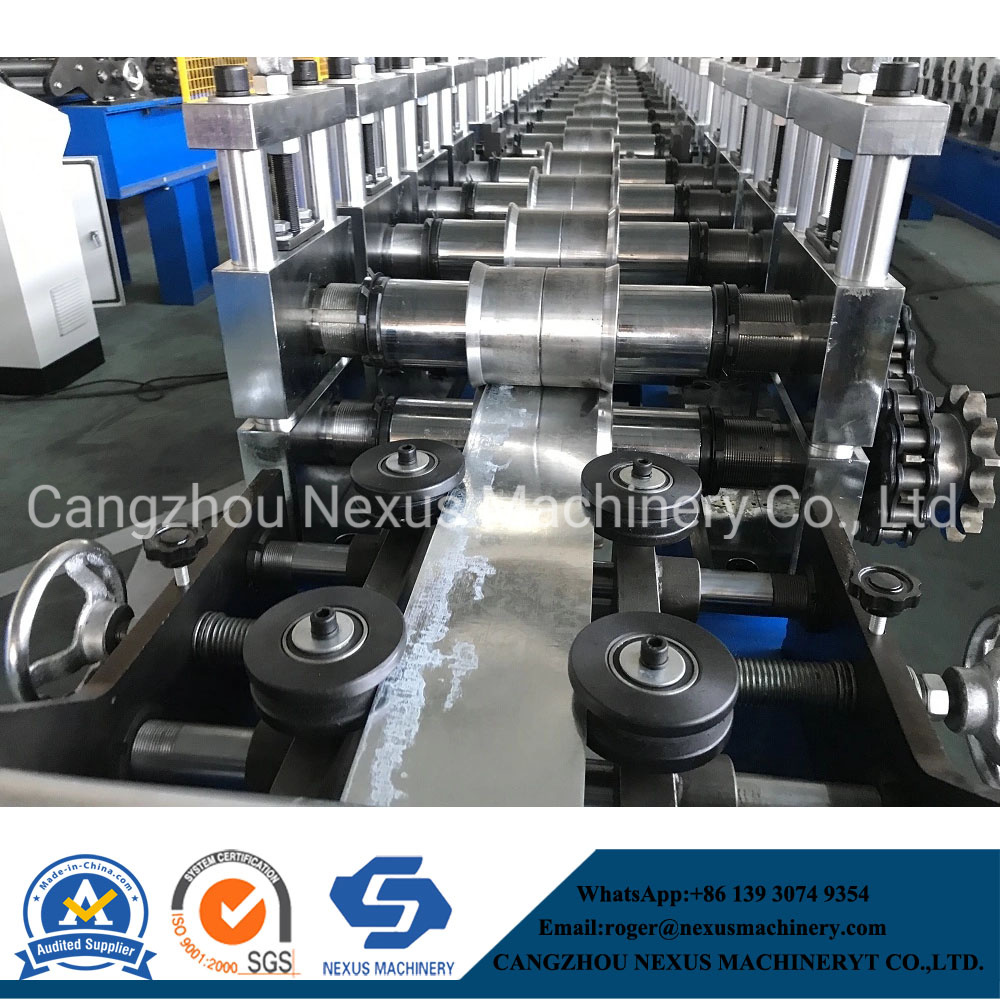

Photos of Stud & Track Roll Forming Machine for Steel Frame Building Construction

ABOUT US:
Stud & Track Roll Forming Machine for Steel Frame Building Construction

More Products for Your Choose:
Stud & Track Roll Forming Machine for Steel Frame Building Construction

FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made within 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
