Light Gauge Steel Stud Top Quality Track Framing Machine

Cangzhou Nexus Machinery Co., Ltd.
Contact Now

Light Gauge Steel Stud Top Quality Track Framing Machine

Model NO. : NX-50-75-100

Product Name : Light Gauge Steel Stud Track Framing Machine

Coil Material Thickness : 0.3-0.8mm

Processing Material : Galvanized Steel

Roller Material : Cr12MOV

Diameter of Shaft : 56mm

Forming Speed : 15-30m/Min

Package : One Full Set of 20 Feet Container

Thickness of Structure : 30mm

Main Motor Power : 5.5kw

Drive : Gear Box

Total Weight (Approx) : 2.3t

Trademark : Nexus Machinery

Transport Package : Control Box and Easy Damaged Parts: Protective PA

Specification : 60-27-28

Origin : Cangzhou

HS Code : 8455221000

Port : Tianjin, China

Supply Ability : 10 Sets/Month

Payment Terms : L/C, T/T, D/P, Western Union, Paypal, Money Gram

Warranty : 1 Year

Certification : CE, RoHS, GS, ISO9001, SGS

Customized : Customized

Condition : New

Control Type : Electric

Automatic Grade : Automatic

Contact Now

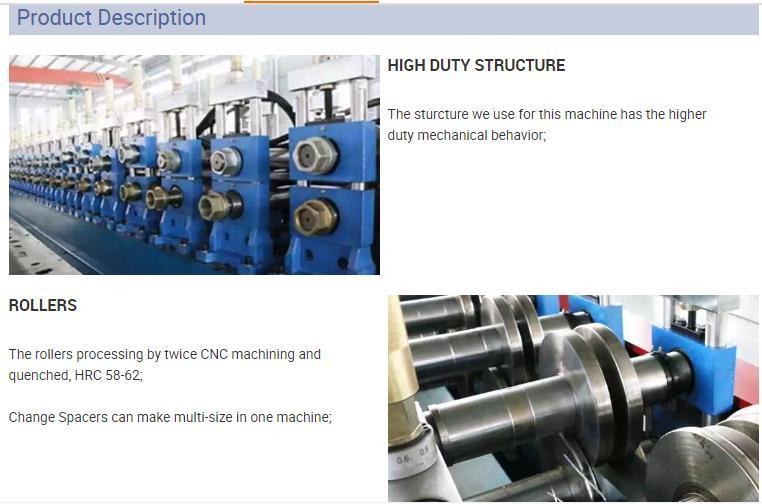

Product Description

Customer Question & Answer
Ask something for more details

Light Gauge Steel Stud Top Quality Track Framing Machine


Light Gauge Steel Stud Top Quality Track Framing Machine


Specifications

1.

Power
requirement


Type

380v/3ph/50hz







Main Motor power

5.5kw







Cutter power

5.5kw+2.3kw



2.

Forming speed(m/min)

0-30m/min  max

Not include the time of cutting

3.

Forming stations

12 stations



5.

Material of rollers

CR12



6.

Thickness of structure

30mm



7

Forming shaft diameter(mm)

70



8

Drive

Gear box



9

Type of cutting

Hydraulic cutting



10.

Control system

 PLC xinjie



11.

Install dimension(depend on the final design)

4.8m×0.6m×1.2m

Without panel length

12.

Total weight (Approx)

2.3T

Depend on final design

13.

Screen

Text screen /touch screen




Light Gauge Steel Stud Top Quality Track Framing Machine
Light Gauge Steel Stud Top Quality Track Framing Machine
Light Gauge Steel Stud Top Quality Track Framing Machine


Photos of Light Gauge Steel Stud Top Quality Track Framing Machine for you reference:

Light Gauge Steel Stud Top Quality Track Framing Machine
Light Gauge Steel Stud Top Quality Track Framing Machine
Light Gauge Steel Stud Top Quality Track Framing Machine
Light Gauge Steel Stud Top Quality Track Framing Machine
Light Gauge Steel Stud Top Quality Track Framing Machine
ABOUT US:

Light Gauge Steel Stud Top Quality Track Framing Machine

More Products for Your Choose:
Light Gauge Steel Stud Top Quality Track Framing Machine
FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made within 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
Light Gauge Steel Stud Top Quality Track Framing Machine
